Details

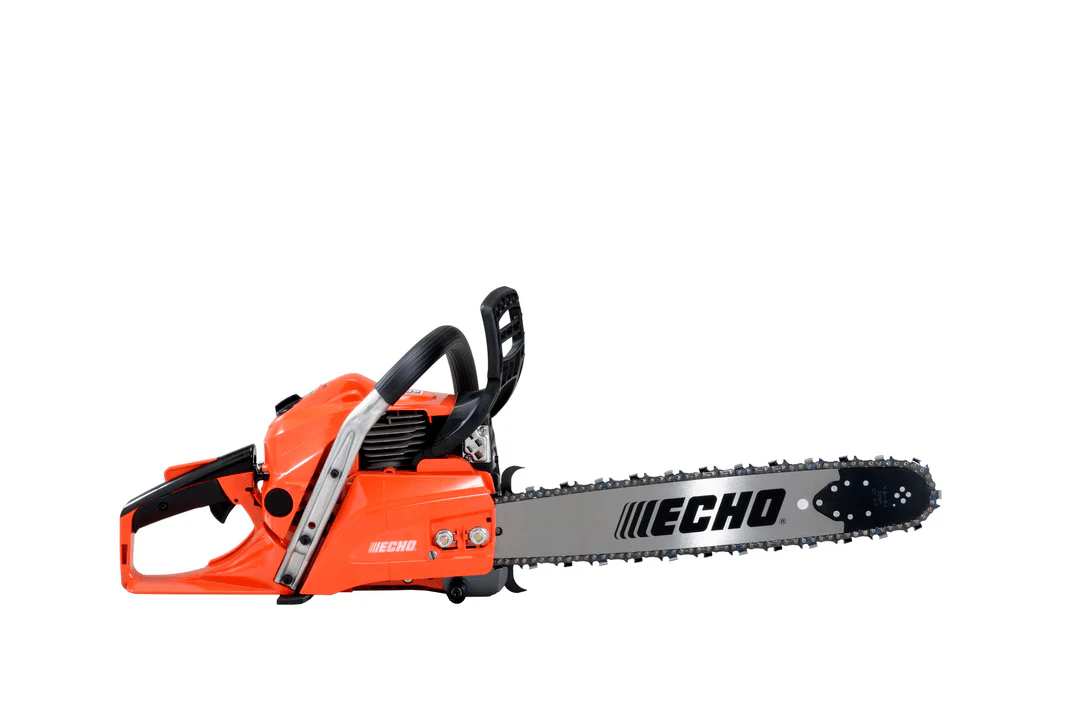

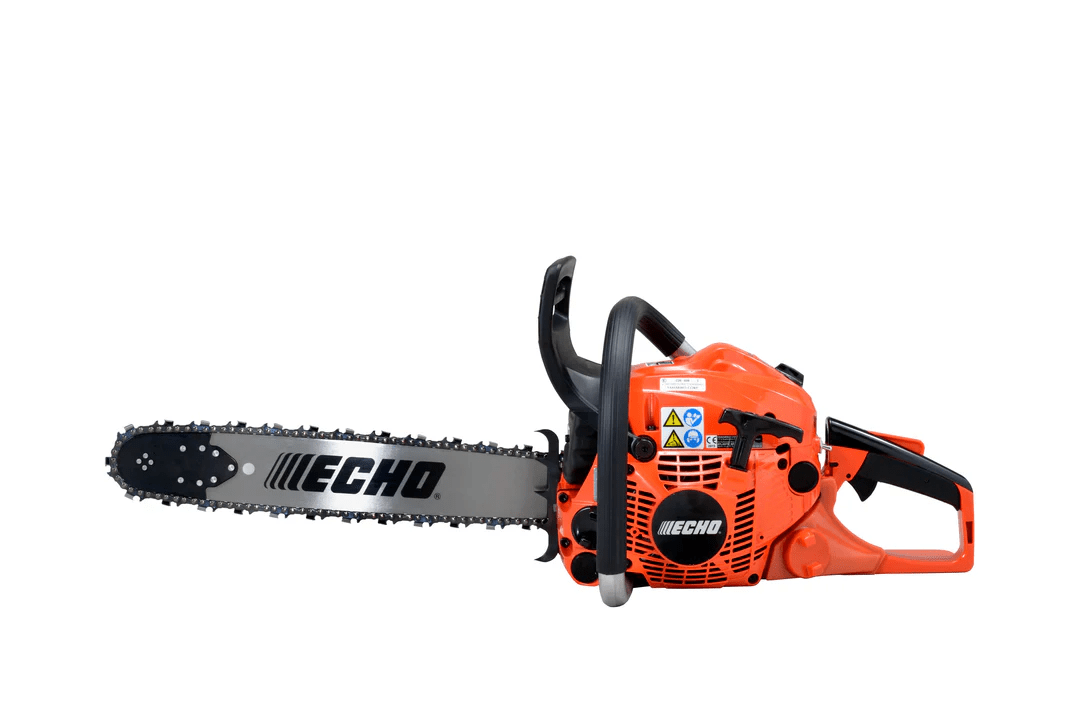

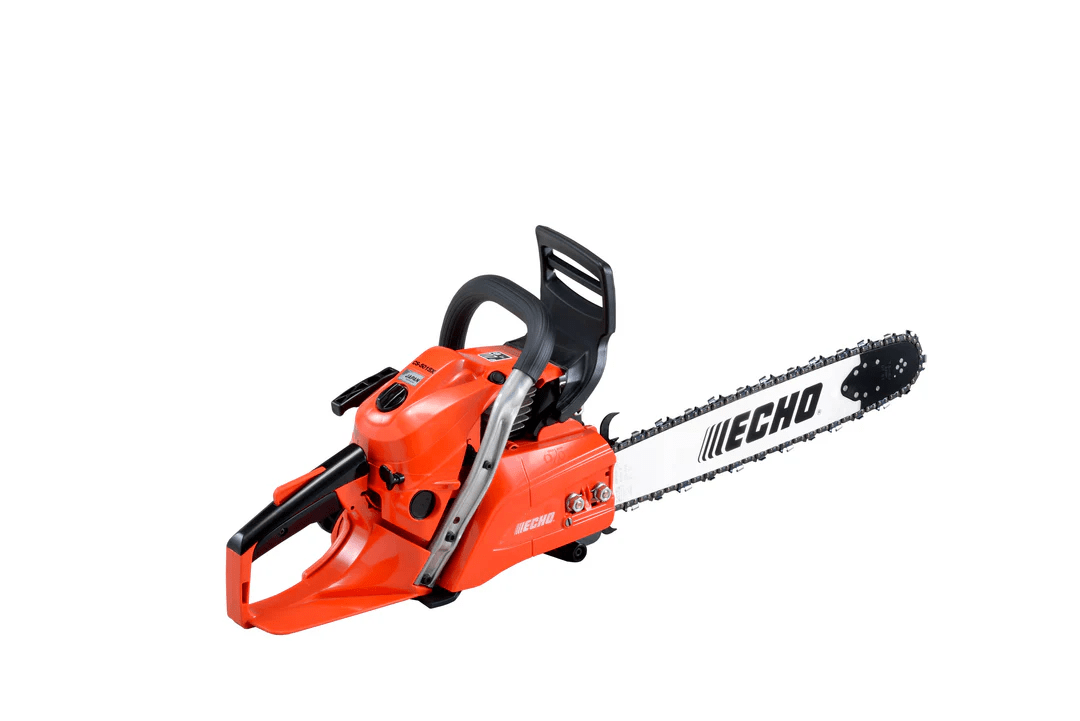

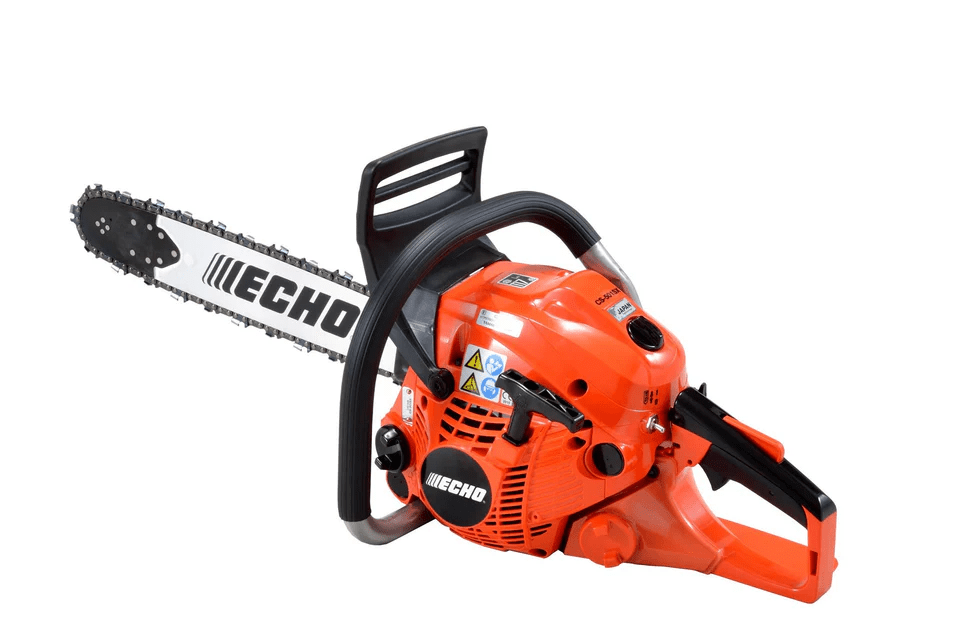

ECHO's most powerful Easy Start chainsaw the CS-501SX is a professional petrol chainsaw, ideal for felling. It features a 50.2cc engine and Easy Start and semi-automatic decompression for easy starting. The Auto Return choke, dual post chain rake, chain catcher and rear hand guard make it the ideal Chainsaw for the busy professional operator with ease of use and safety in mind.
Powerful 50.2cc 2.1kW Echo 2-Stroke Engine with Easy Start system for quick, effortless starting.
Features
- 6 position anti-vibration cushions on rear handle
- Dual Post Inertia chain brake and Chain Catcher
- Weight 4.7kg
- Automatic choke return
- Side chain adjuster & tool-free air filter access
- ECHO power tools come with a five year domestic warranty or a two year warranty in professional use
- Bar Length 45 cm
Specifications
| Engine displacement (cm³) | 50.2 |
|---|---|
| Output (kw) | 2.57 |
| Output (ps) | 3.50 |
| Dry Weight (kg) (undefined) | 4.7 |
| Fuel Tank Capacity (ml) | 500 |
| Chain Oil Tank Capacity (ml) | 280 |
| Fuel Consumption At Maximum Engine Power (L/h) | 1.54 |
| Ignition System | CDI |
| Start Assist System | Decomp |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 0.325 |
| Guide Bar Gauge (inch) | 0.58 |
| Applicable Bar Length (cm/inch) | 45 /18 |
| Sound pressure level (dB(A)) | 103.6 |
| Sound power level (dB(A)) | 113.5 |
| CO² (g/kW・h) | 742 |
| Vibration Front handle/Rear handle (m/s²) | 5.2 / 5.4 |
