Details

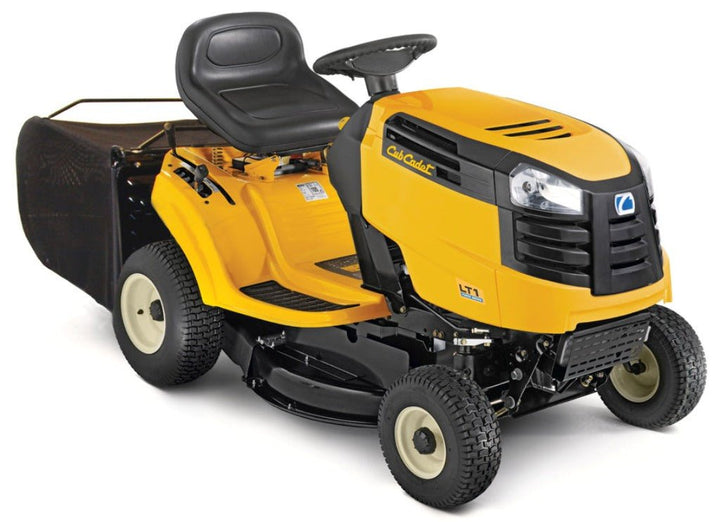

The Cub Cadet LT1 NR76 has a 72cm/28" cutting width and is powered by a Cub Cadet engine with a seven-speed transmatic transmission. The deck is a twin bladed design, the two blades contra-rotate, working together with the Direct Collect system to drive the grass directly into the grass box, ensuring very good collection even in difficult conditions.
With a step-through chassis design, a tight turning radius of 46cm/18", a 200 litre grass box which can be easily emptied from the seat, this garden tractor is as easy to use as it is manoeuvrable. It is ideally suited for areas between 1 and 1½ acres of lawn.
Features
The Cub Cadet LT1 range of lawn tractors are strong, versatile and comfortable; delivering perfect mowing performance, exceptional cutting and bagging with incredibly responsive handling. Get perfect cutting results even on undulating or difficult terrain.
- Cutting width : 76cm / (30'')
- Transmission : Transmatic 7 Speed
- Rated power kW/min -1 : 7 / 2,5
- Mowing area in m 2 /h: 2.500
- Grass bag capacity (l) : 200
Specifications
| Engine | Cub Cadet OHV |
|---|---|
| Engine displacement (cm3) | 382 |
| Rated power (kW/min-1) | 7 / 2,5 |
| Cylinders | Single |
| Fuel tank capacity(l) | 3.8 |
| Transmission | Transmatic 7 Speed |
| Air speed (max) | 7 (f/r), shift-on-the-go |
| Control | Fot pedal control |
| Cruise Control | No |
| Mowing area (m2/h) | 2.500 |
| Cutting width | 76cm (30") |
| Cutting height | 30-95 mm |
| Number of blades | 2 |

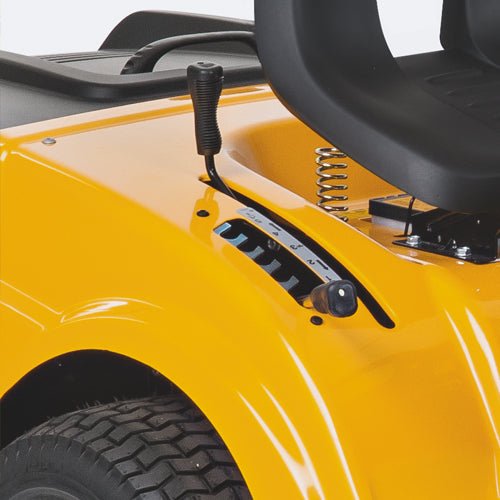

| Deck Engagement | Manual lever control |
| Deck height positions | 5 positions |
| Deck Wheels | No |
|---|---|
| Wash nozzle / mulching plug | No |
| Grass bag capacity (l) | 200 |
| Bag lever / hardtop | No |
| Bag full indicator / Grass Deflector | No / 196-750A678 |
| Front axle | Steel |
| Front bumper | Not fitted (OEM-196B603) |
| Turning radius (cm) | 46cm (18'') |
| Wheels (front/rear) (Zoll) | 15 x 5 / 18 x 6.5 |
| Wheel bearings | Sleeve bearings |
| Frame | Easy entry frame |
| Headlights | Standard |
| Seat type | Medium back |
| Seat adjustment | Screw |

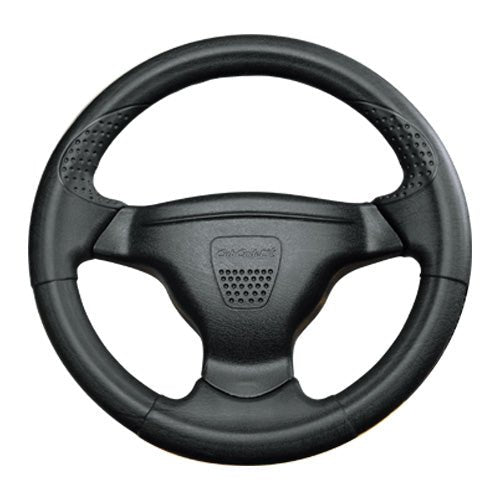

| Steering wheel | Comfort |
|---|---|
| Tool box / Cub holder | – / – |
| 12V Plug | – |
| Mow in reverse | – |
| Battery charger | (196-967-678) |
| Noise values (dB) | 88 / 98 / 100 |
| Vibration value body (K-factor) (m/s2) | 1 / 0.5 |
| Vibration value hand-arm (K-factor) (m/s2) | 5 / 1.5 |
| Dimensions (L / W / H) (cm) | 225 / 91 / 103 |
| Weight net (kg) | 150 |
