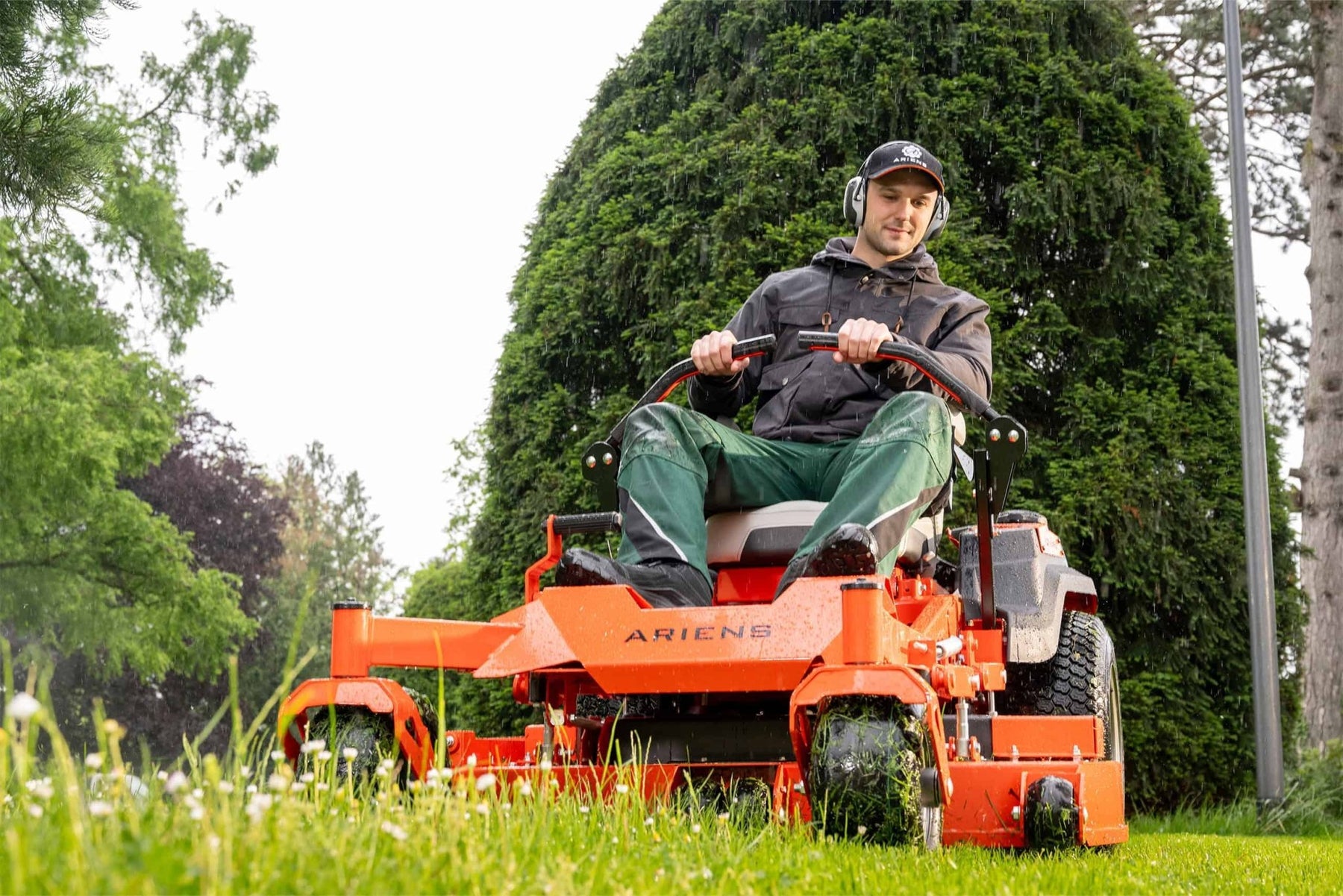

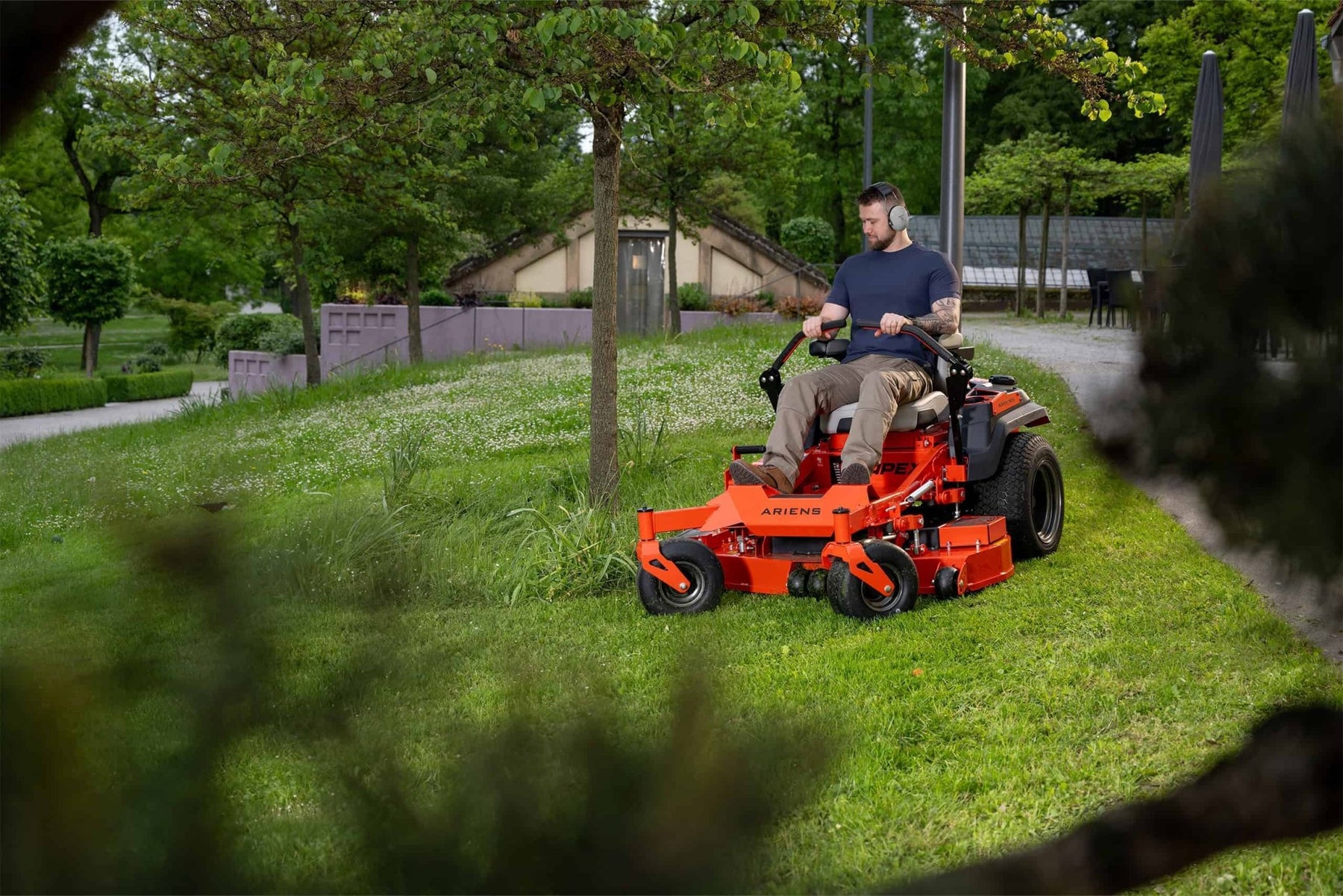

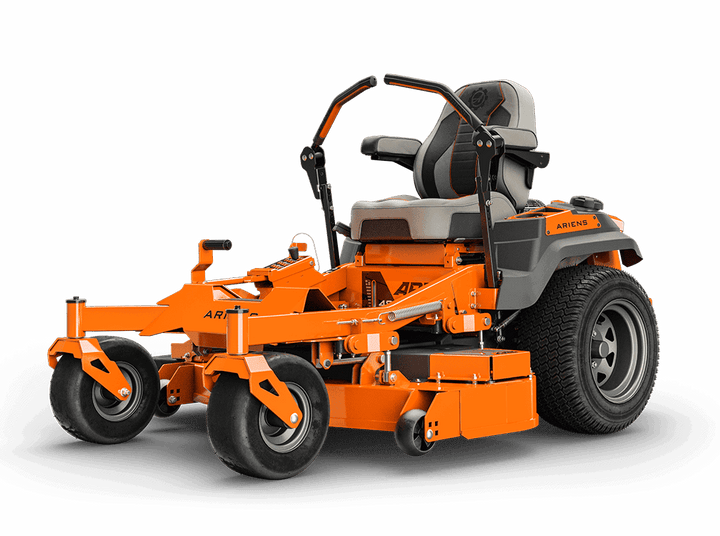

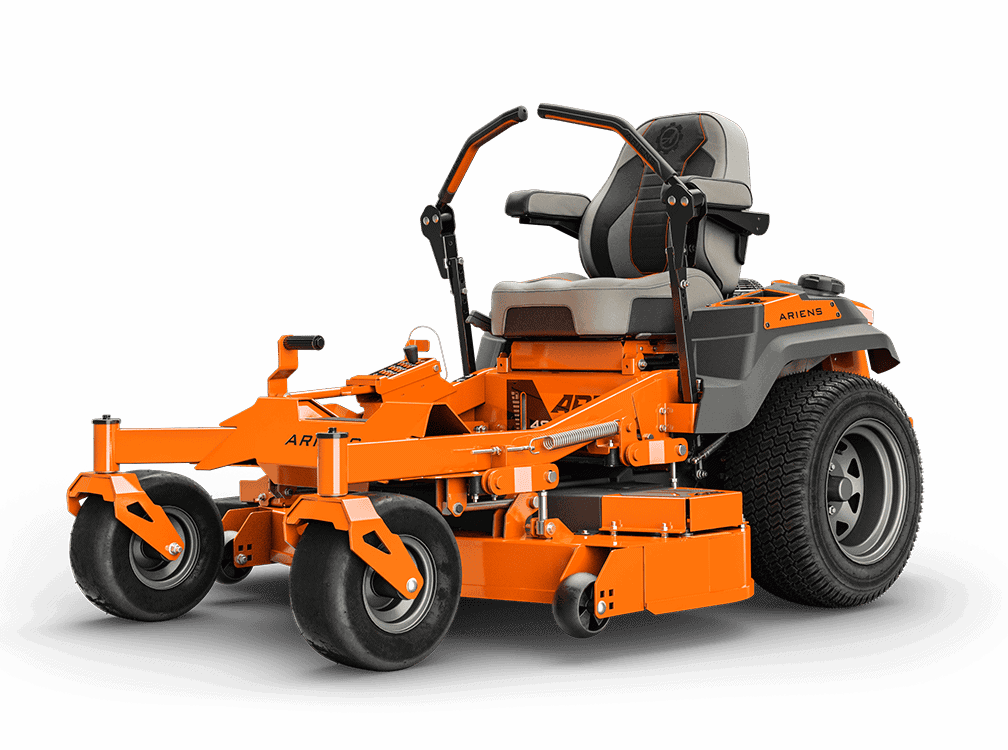

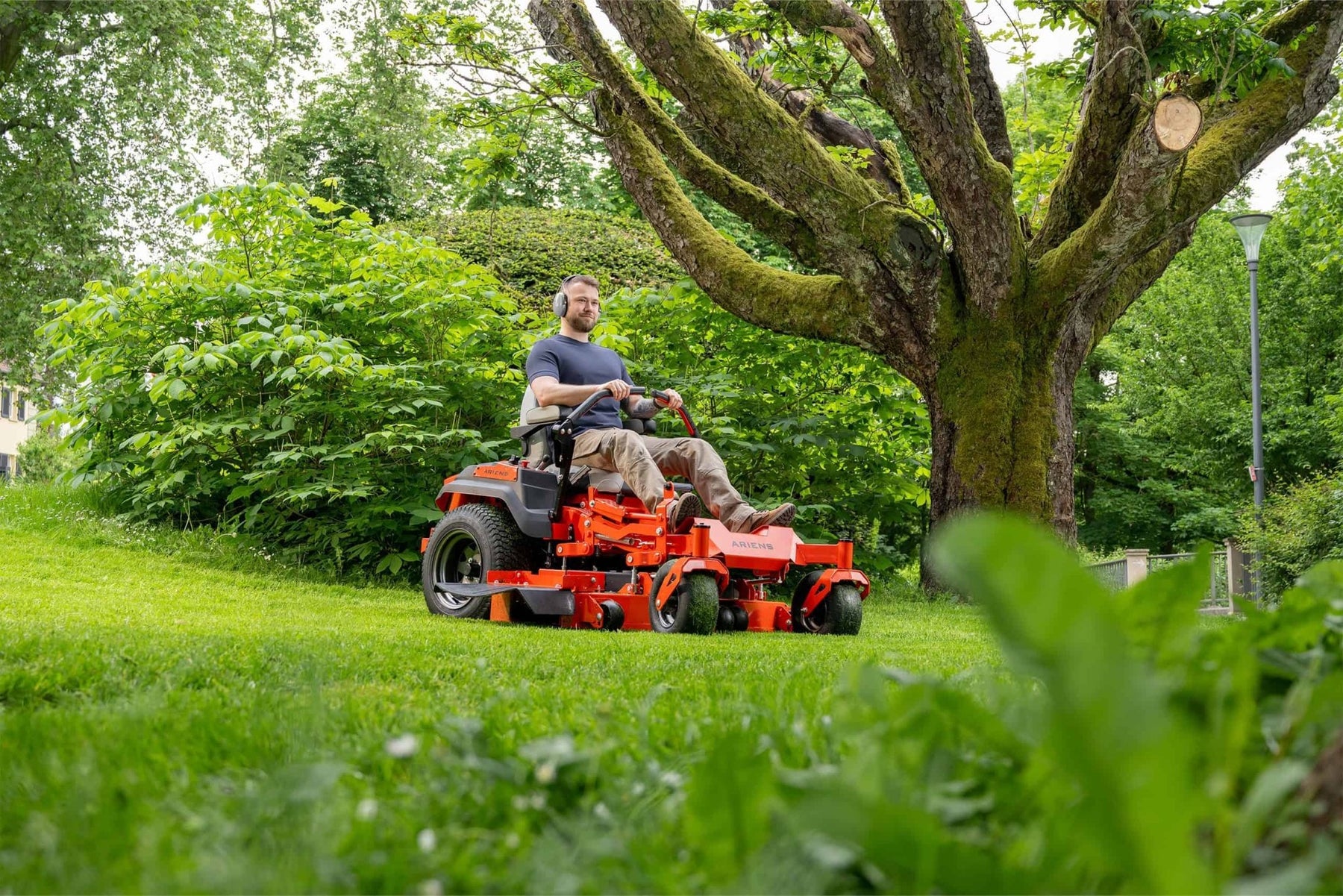

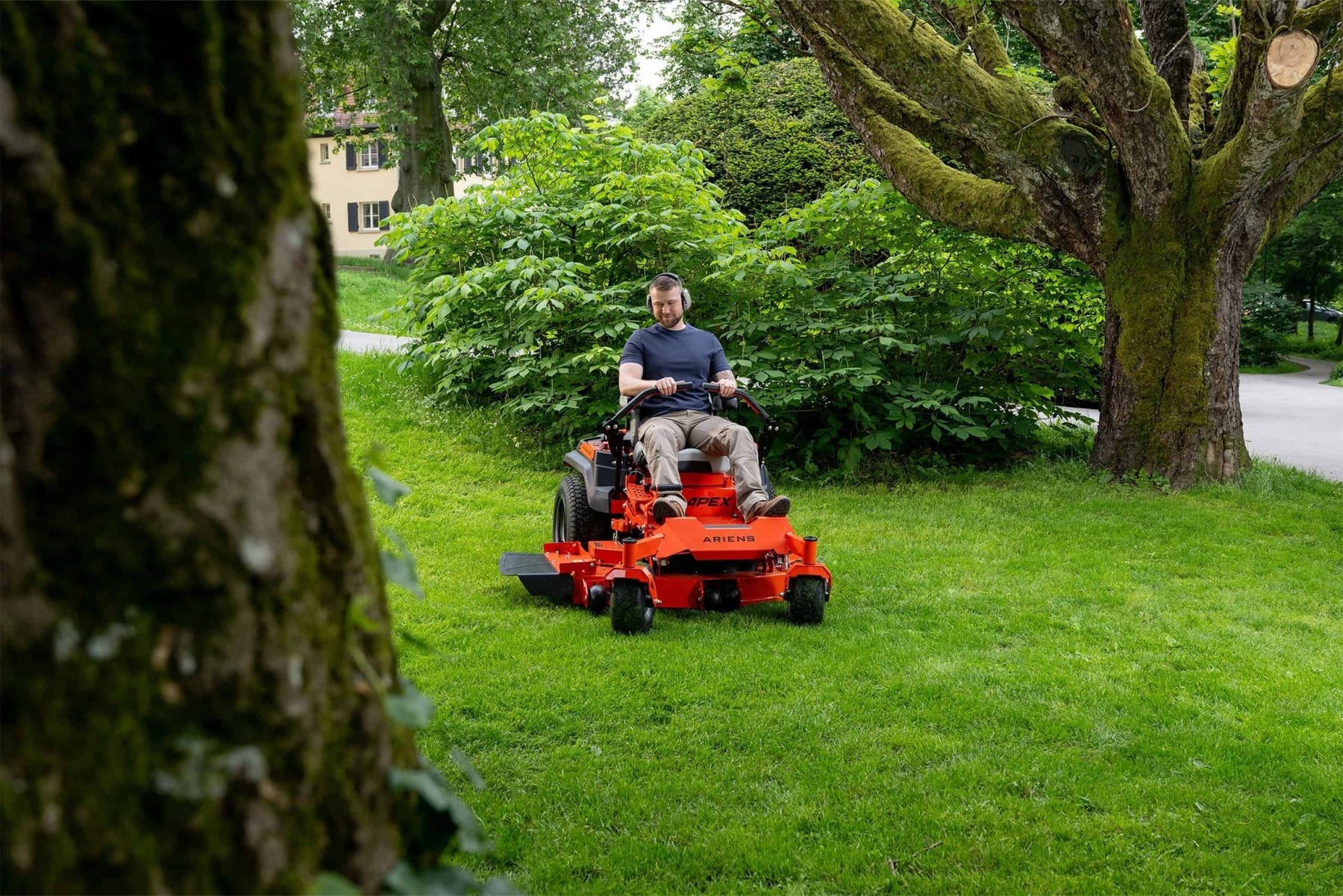

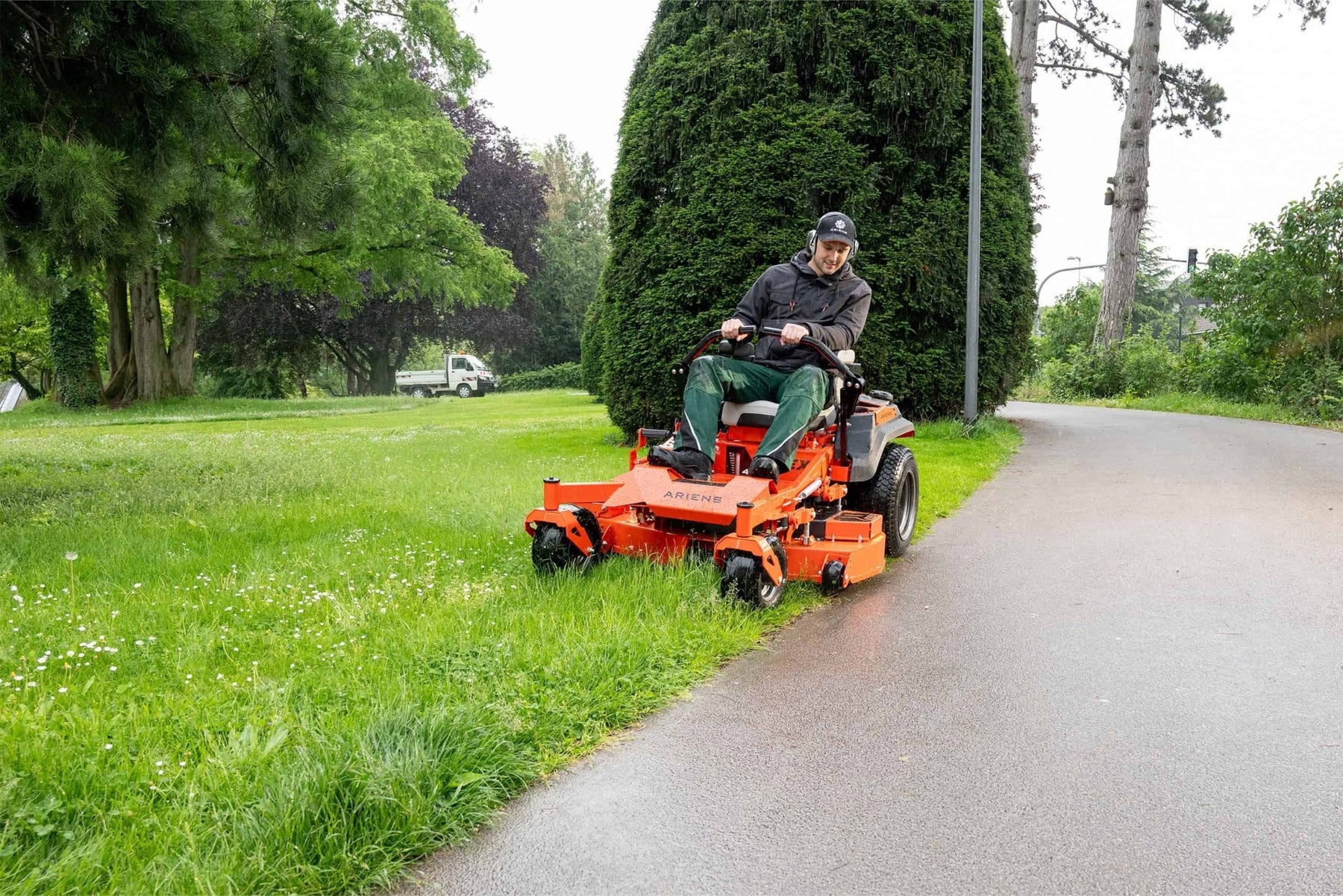

The Ariens Apex 48 is a commercial-grade zero-turn mower built for service providers and grounds teams who mow large areas regularly. Its 122 cm (48") fabricated deck and Kawasaki FR691 V-Twin engine deliver the cutting power and all-day comfort needed to keep big jobs moving.
Clippings are thrown clear through a side-discharge chute, with an optional mulching kit available. The Apex is built for frequent professional use rather than occasional domestic mowing, and is intended for trained operators.
Features
- 122 cm (48") fabricated cutting deck — 3.6 mm steel with double thickness around the blade supports
- Kawasaki® FR691 V-Twin OHV engine, 726 cc, 20.8 hp
- Hydro-Gear® ZT-3100 commercial transaxles
- Side-discharge deck; optional mulching kit available
- Forged aluminium blade spindles — run cooler and resist impact better than cast spindles
- Constant Belt Tension (CBT) keeps deck-belt tension consistent and extends belt life
- Foot-operated deck lift with 15 cutting heights from 3.8–12.7 cm
- High-back premium seat with padded, adjustable armrests
- ROPS (roll-over protection) available as an option
- 4-year / 500-hour commercial warranty
Specifications
| Engine | Kawasaki® FR691 V-Twin OHV |
|---|---|
| Engine displacement | 726 cm³ |
| Maximum power | 20.8 hp (15.5 kW) at 3,600 rpm |
| Drive system | Hydro-Gear® ZT-3100 transaxles |
| Fuel capacity | 19.3 L |
| Max. speed (forward / reverse) | 12.9 / 6.4 km/h (8 / 4 mph) |
| Cutting width | 122 cm (48") |
| Deck type | Side discharge |
| Deck material | 3.6 mm steel, double thickness around blade support |
| Cutting heights | 3.8–12.7 cm, 15 positions |
| Blades | 3 |
| Spindles | Forged aluminium, V-belt drive, electric Ogura® clutch |
| Deck lift | Foot operated |
| Front wheels | 13 x 6.5-6 |
| Rear wheels | 22 x 10-12 |
| Seat | High-back premium, adjustable, padded armrests |
| ROPS | Optional |
| Hour meter | Standard |
| Weight | 375 kg |
| Warranty | 4 years / 500 hrs (commercial) |
