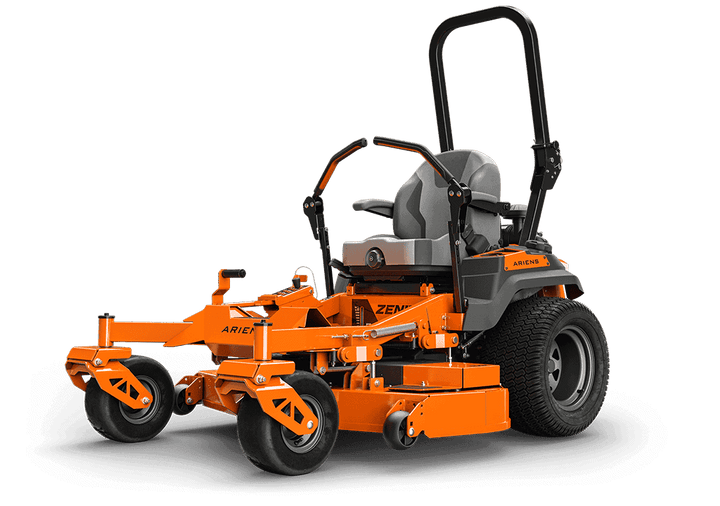

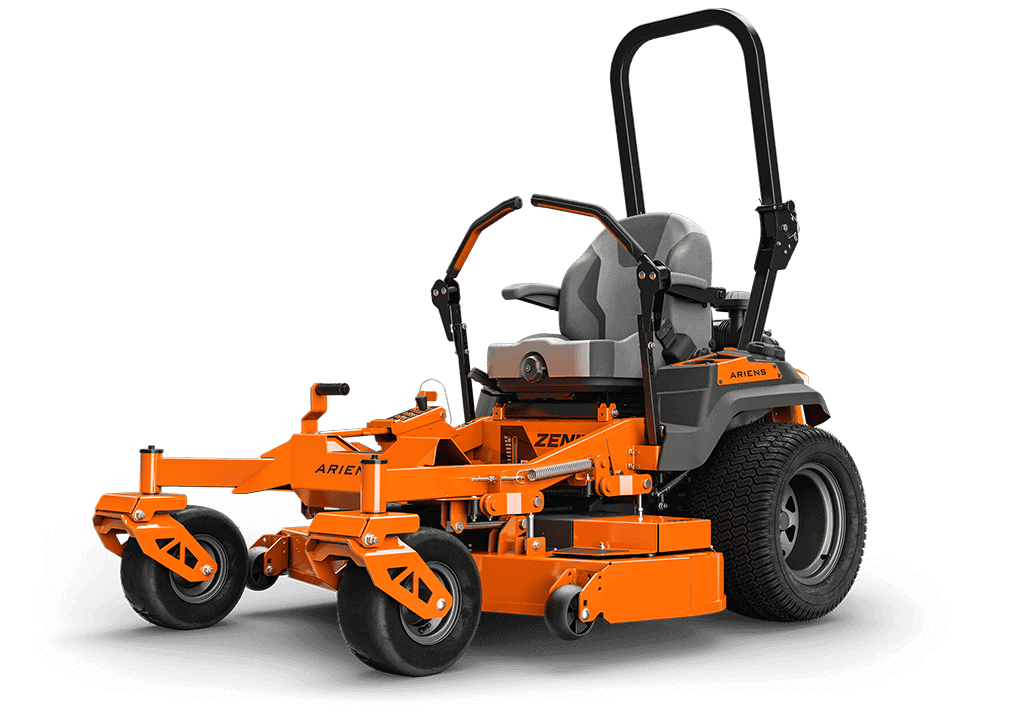

The Ariens Zenith 60R is the largest, rear-discharge model in the Ariens petrol zero-turn range — a professional machine built for daily use on big grounds. Its 152 cm (60") fabricated deck covers more ground per pass than any other Ariens zero-turn, driven by a commercial Kawasaki FX730V V-Twin engine made for long, hot mowing sessions.
On the 60R, clippings drop neatly between the rear wheels instead of being thrown out to the side — cleaner around paths, beds, parked cars and public areas, with less blowing-off afterwards. A full-suspension seat with lumbar support, suspended front forks and a foldable ROPS fitted as standard keep operators comfortable and protected over long shifts. Built for daily professional use by trained operators.
Features
- 152 cm (60") fabricated cutting deck — 3.6 mm steel with double thickness around the blade supports
- Rear-discharge deck — drops clippings between the wheels for cleaner mowing around paths and beds
- Commercial Kawasaki® FX730V V-Twin OHV engine, 726 cc, 22.2 hp
- Hydro-Gear® ZT-3200 commercial transaxles
- Forged aluminium blade spindles and Constant Belt Tension (CBT) deck
- Full-suspension high-back seat with lumbar support and adjustable armrests; suspended front forks
- Foldable ROPS (roll-over protection) fitted as standard
- Foot-operated deck lift with 15 cutting heights from 3.8–12.7 cm
- 4-year / 750-hour commercial warranty
Specifications
| Engine | Kawasaki® FX730V V-Twin OHV |
|---|---|
| Engine displacement | 726 cm³ |
| Maximum power | 22.2 hp (16.6 kW) at 3,600 rpm |
| Drive system | Hydro-Gear® ZT-3200 transaxles |
| Fuel capacity | 19.3 L |
| Max. speed (forward / reverse) | 12.9 / 6.4 km/h (8 / 4 mph) |
| Cutting width | 152 cm (60") |
| Deck type | Rear discharge |
| Deck material | 3.6 mm steel, double thickness around blade support |
| Cutting heights | 3.8–12.7 cm, 15 positions |
| Blades | 3 |
| Spindles | Forged aluminium, V-belt drive, electric Ogura® clutch |
| Deck lift | Foot operated |
| Front wheels | 13 x 6.5-6 |
| Rear wheels | 22 x 12-12 |
| Seat | Full-suspension high-back, lumbar support and armrests |
| ROPS | Fitted as standard (foldable) |
| Hour meter | Standard |
| Weight | 423 kg |
| Warranty | 4 years / 750 hrs (commercial) |
